EDGE 3D

Fully automated 3D modeling and terrain generation software from satellite imagery

Situational Awareness on the Battlefield

ARA’s innovative EDGE 3D technology contributes to advanced battlefield situational awareness by providing 3D modeling and terrain generation on the disconnected tactical edge, compatible with the Tactical Assault Kit (TAK) suite.

Designed for the Soldier

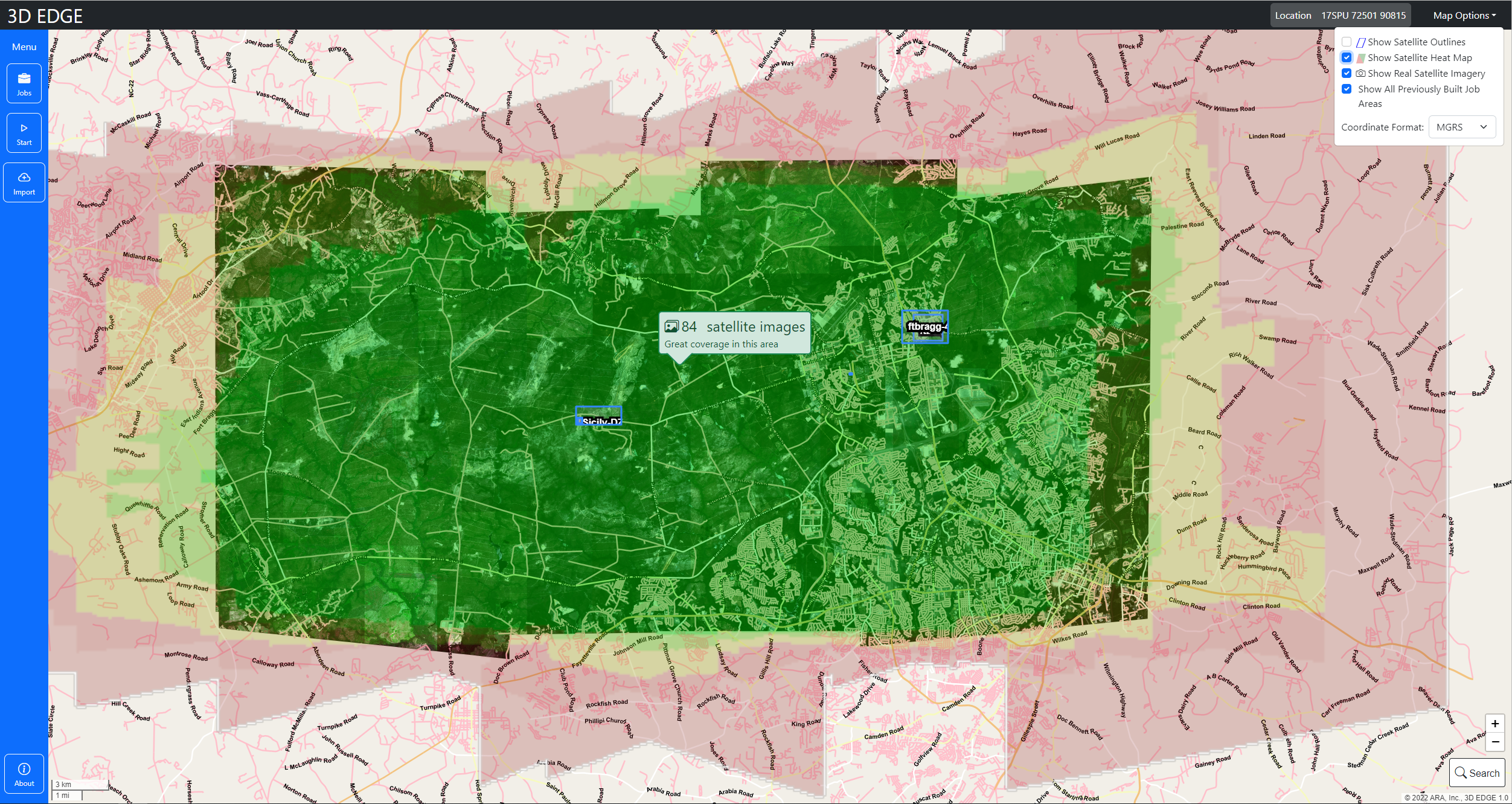

EDGE 3D provides a simple intuitive user interface that allows a soldier to start the process of Landform Engine’s automated 3D generation pipeline. Little to no training needed and no FSE or FSR support required.

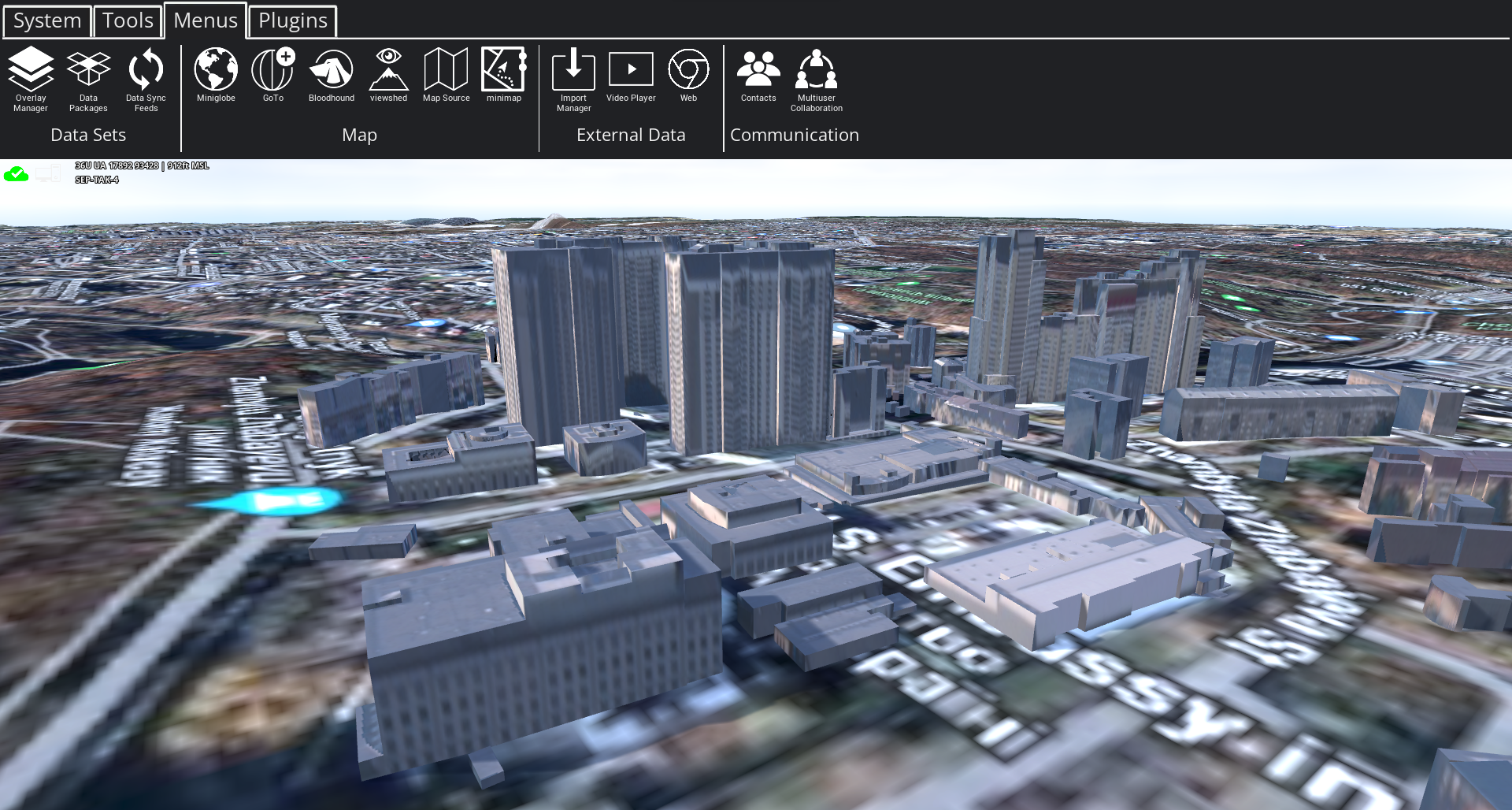

VR-TAK

WINTAK

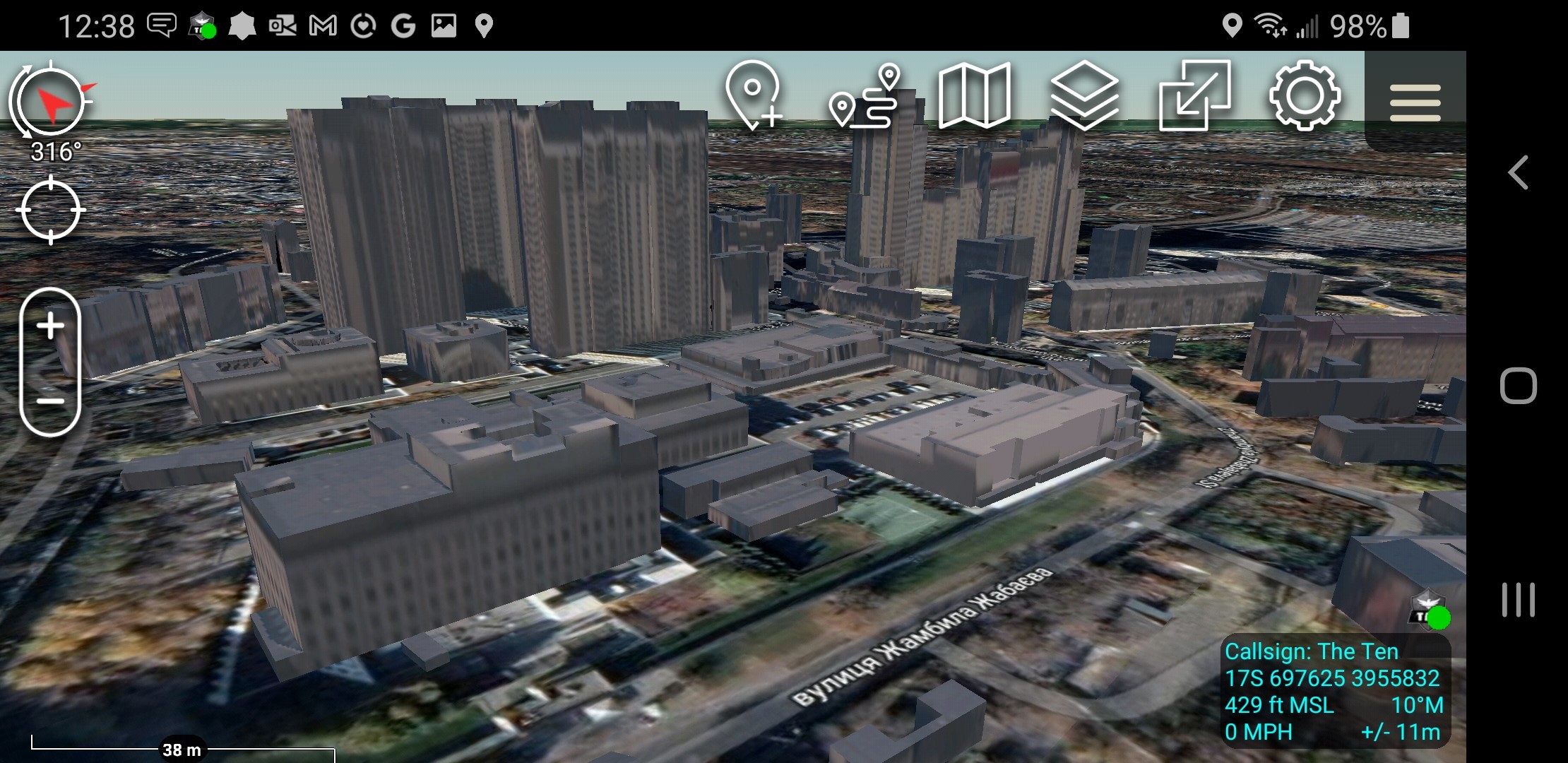

ATAK

Intuitive TAK Integration

The system produces lightweight data files with low polygon count suitable for low bandwidth networks and easily ingested into TAK.

Share 3D Models on the Tactical Edge

With no other ISR assets available, EDGE 3D can build 3D models for mission planning, rehearsals, and command & control. Lightweight 3D models can be easily shared over low bandwidth networks with custom TAK developed mission plans in multiple locations: in garrison; on the plane; or in the AOR.
  • Unlimited US Government usage rights,
    ARA patented
  • Simple intuitive GUI
  • Software deployable to:
    • Laptops – denied mobile forward deployed units
    • Servers – Tactical Operations Center
    • Cloud
  • Crisp and compact
    3D model outputs
    • Light weight, easy to share on
      low-bandwidth networks
    • Easily ingested into the TAK suite

EDGE 3D Flyer

EDGE 3D is powered by Landform Engine
US Patent number 11,423,610.

Fully automated 3D modeling and terrain generation software from satellite imagery powered by Landform Engine.
